MaskPlace: Fast Chip Placement via Reinforced Visual Representation Learning

A new chip placement method based on visual representation learning.

The placement process animation

Benchmark: Bigblue3

Placement Pos Mask t Wire Mask t
View Mask Pos Mask t+1 Wire Mask t+1

Full Benchmark demonstration

Benchmark DREAMPlace Graph DeepPR MaskPlace

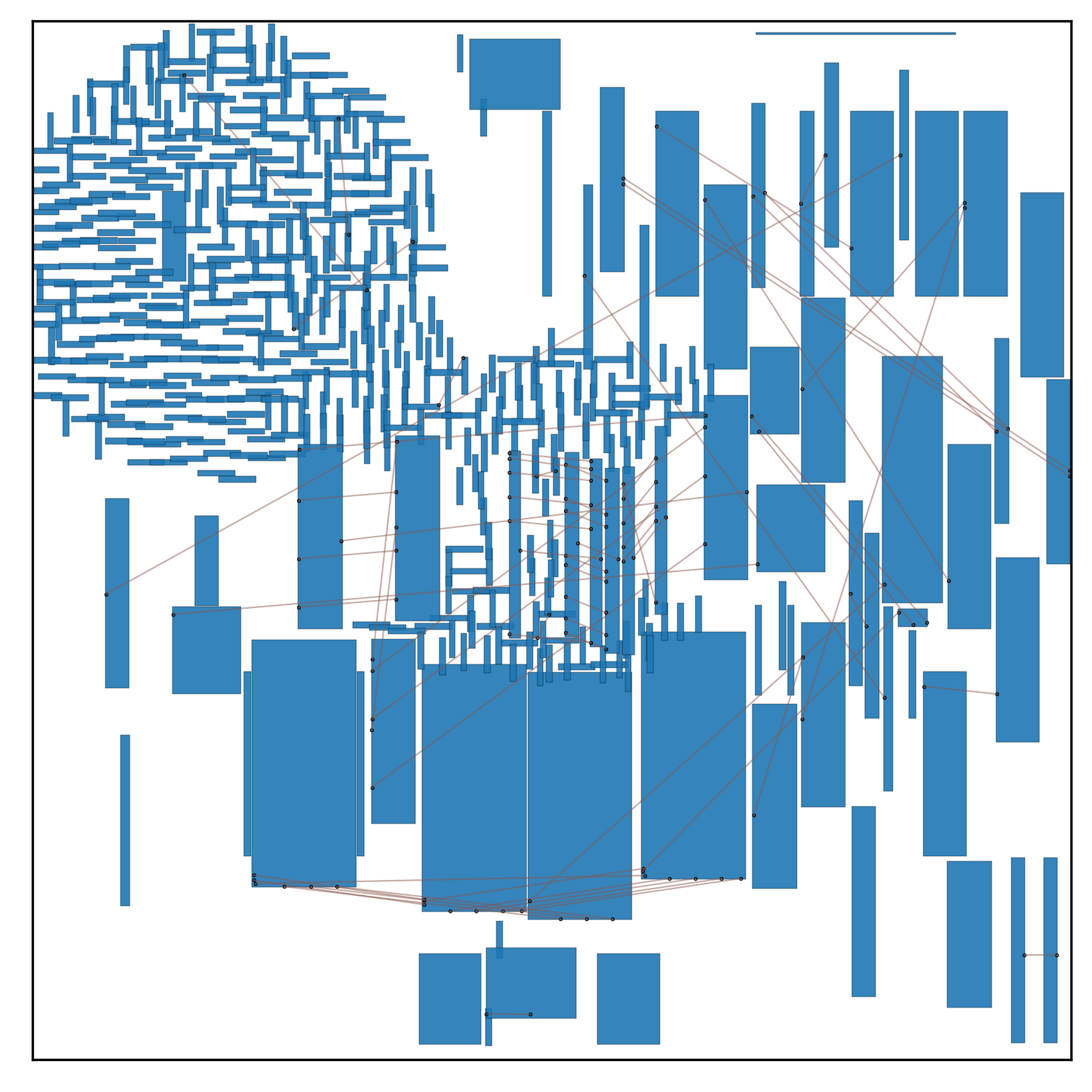

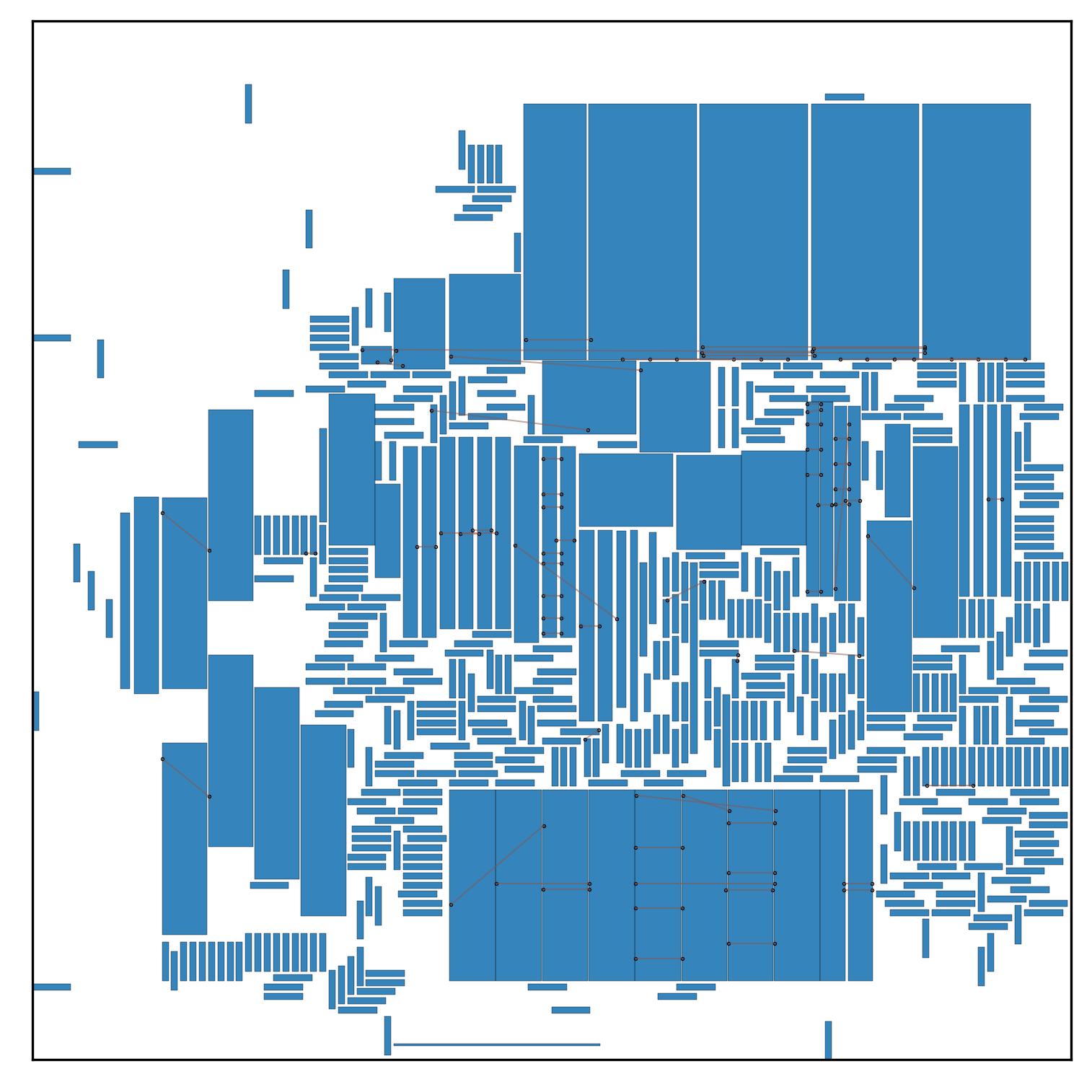

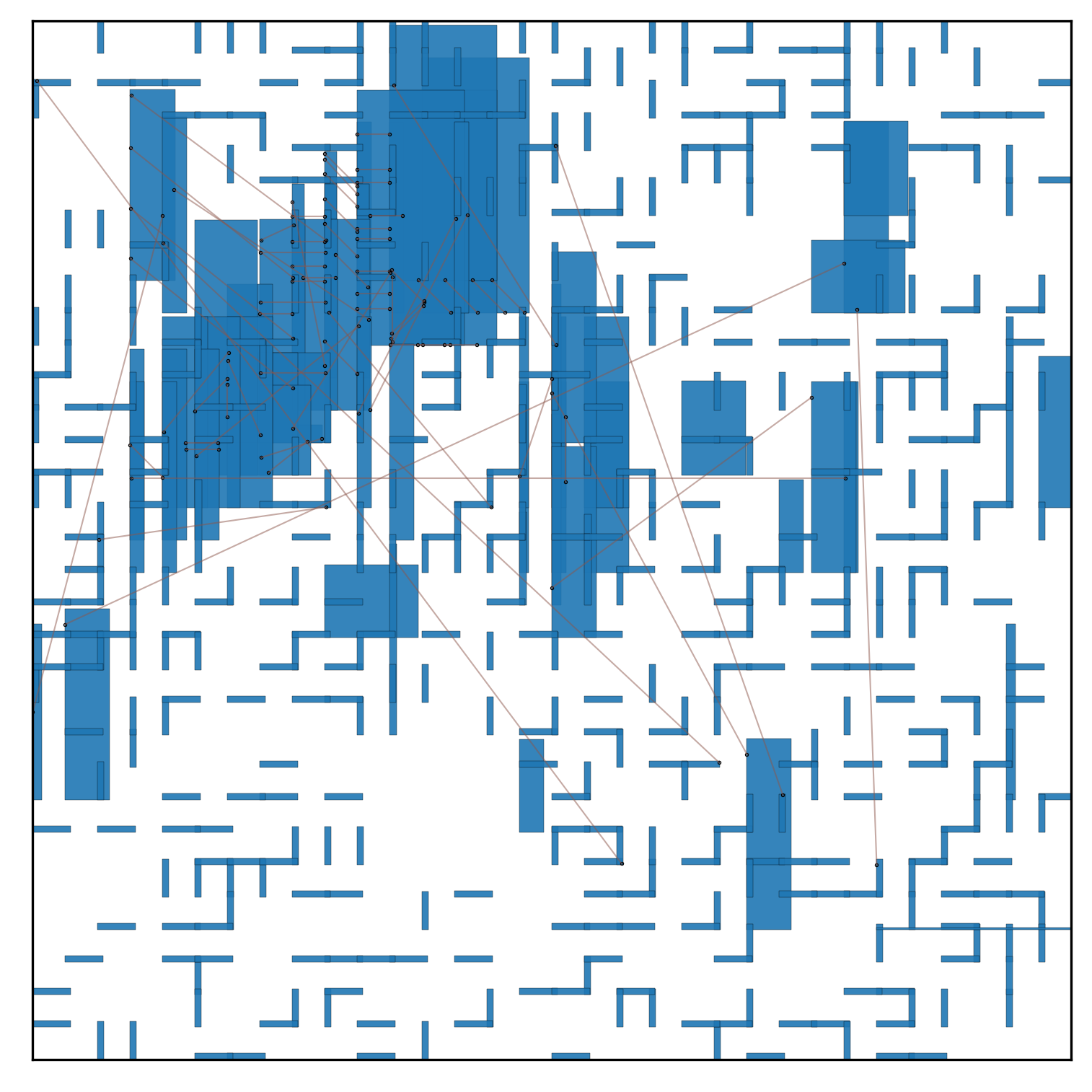

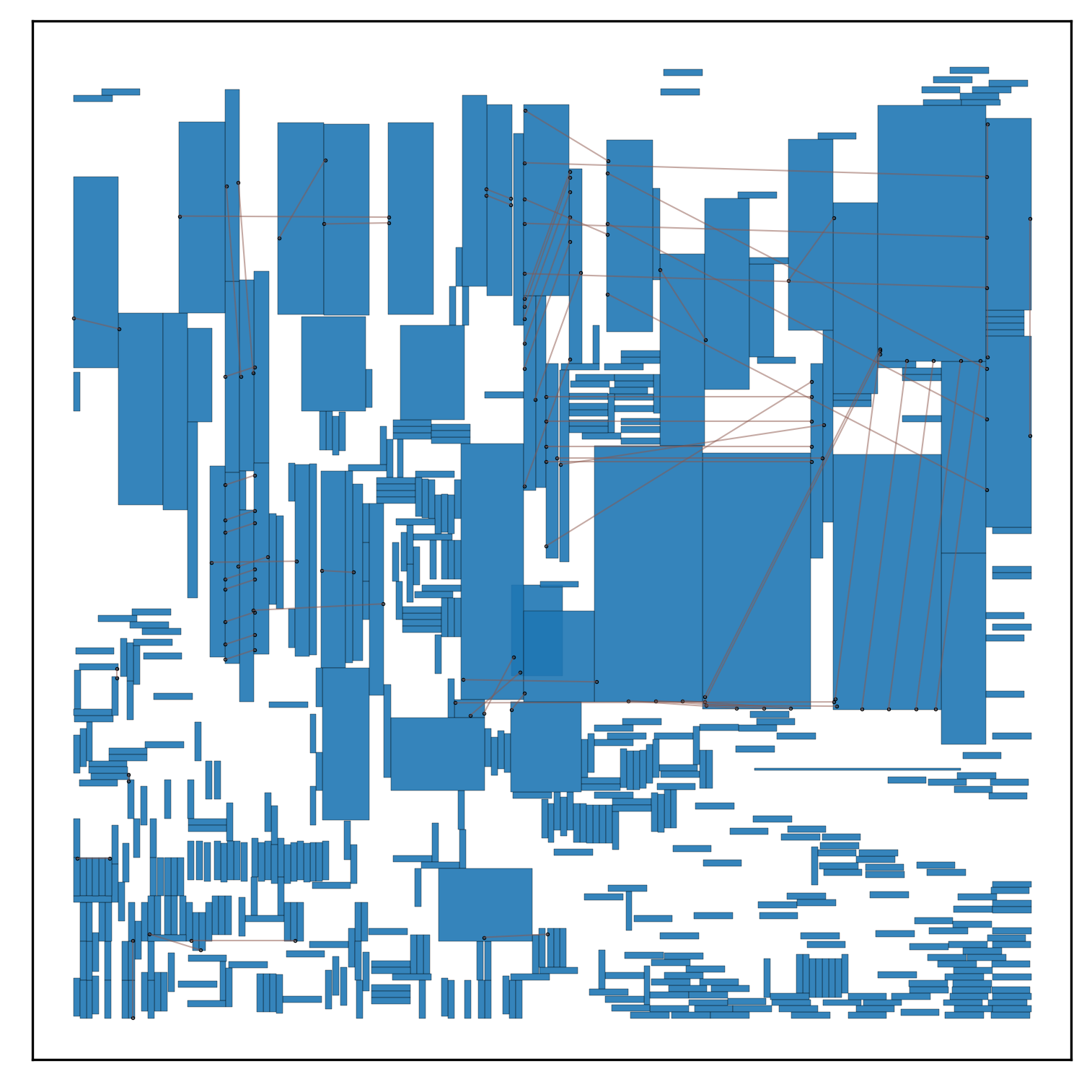

adaptec1
HPWL (105) 17.94 26.05 21.36 6.57
Wirel (105) 19.24 28.54 25.64 7.36

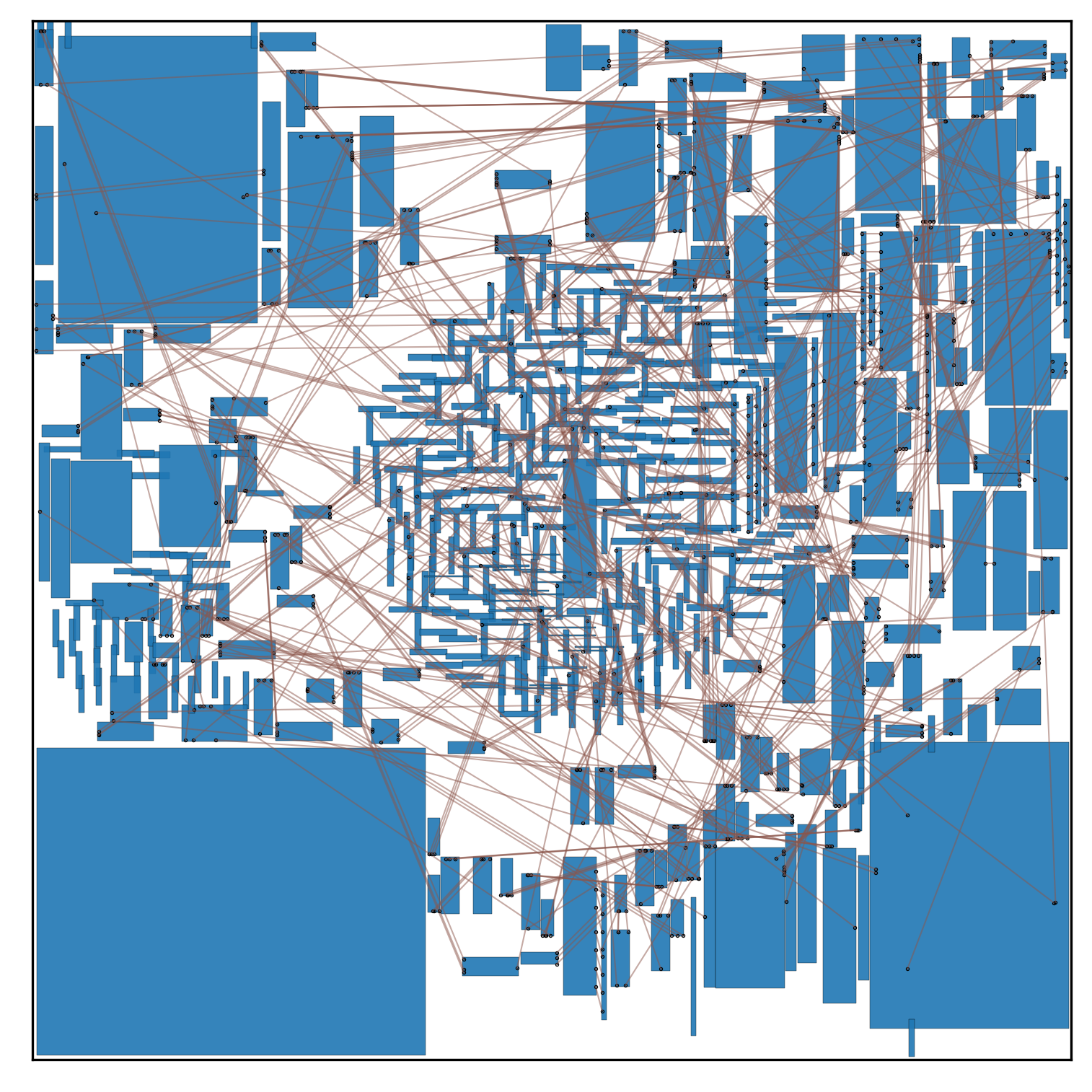

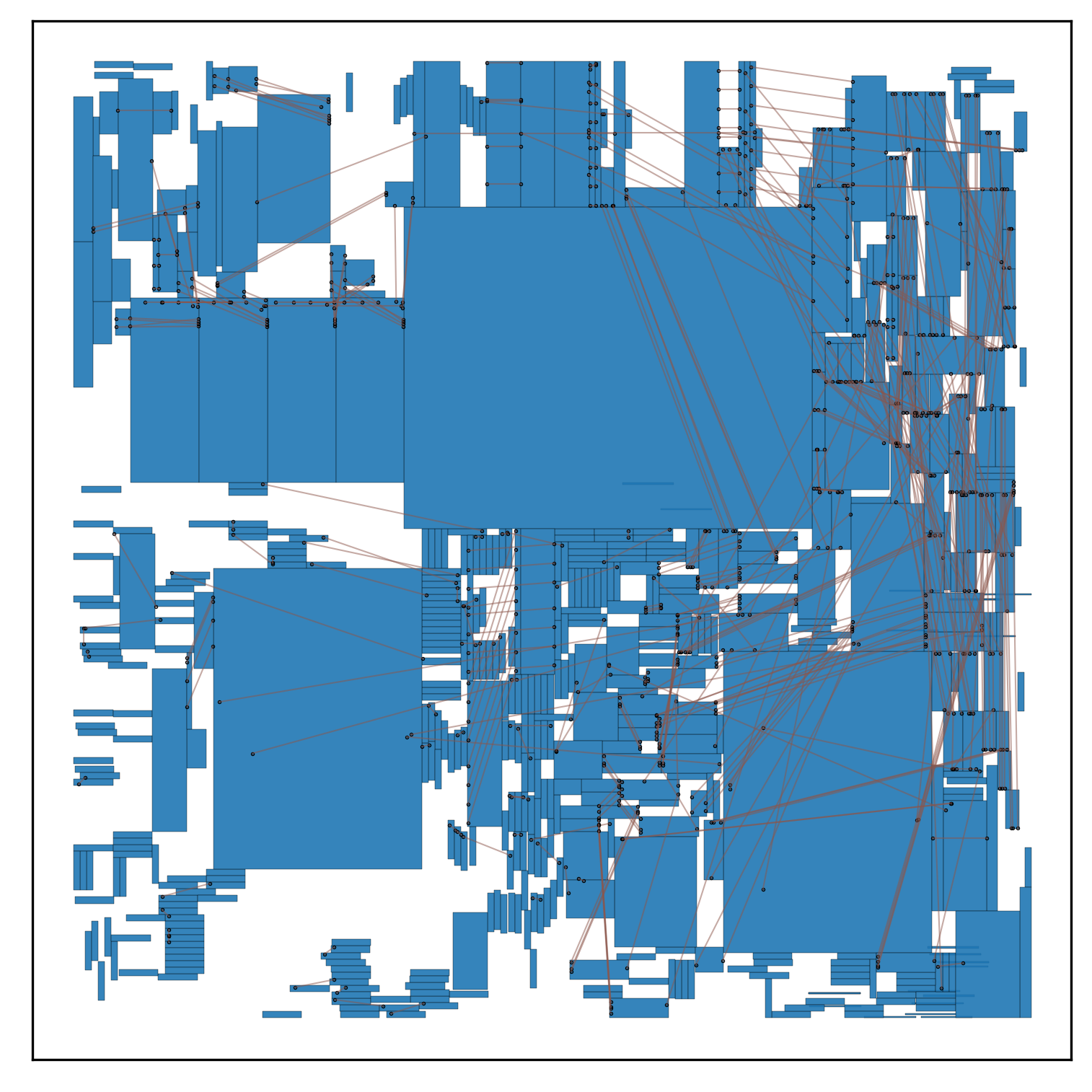

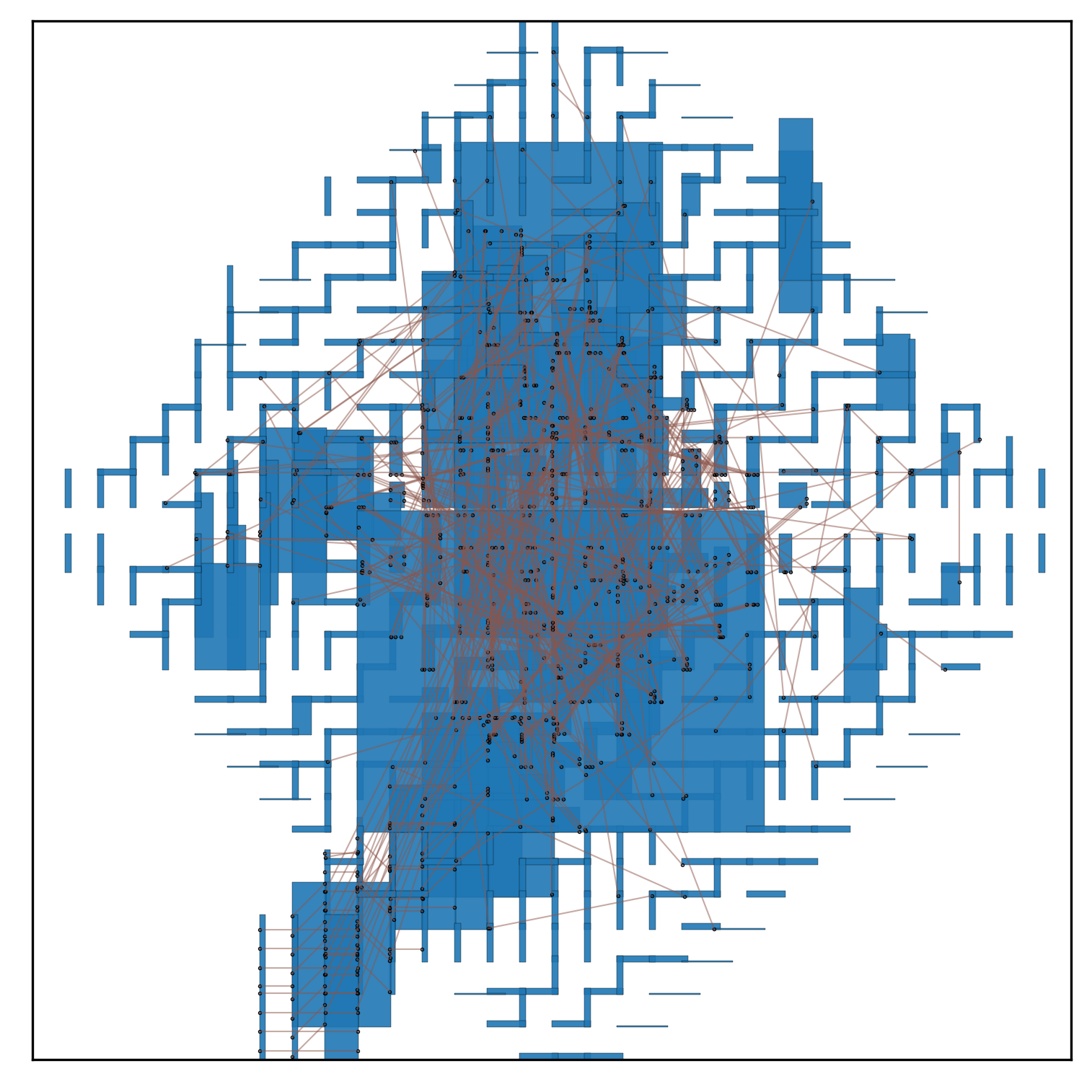

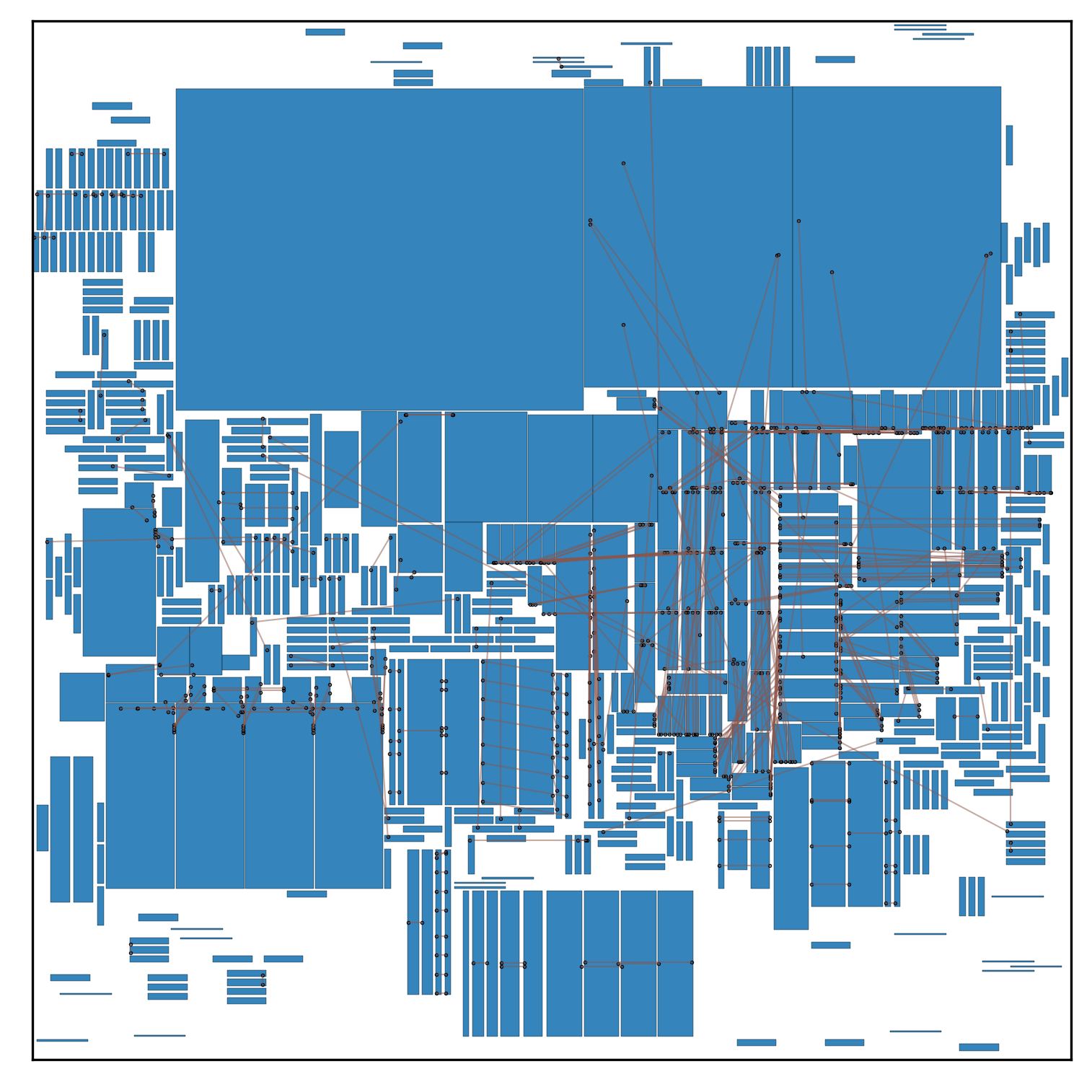

adaptec2
HPWL (105) 135.32 359.35 197.13 79.98
Wirel (105) 140.91 381.64 205.78 83.59

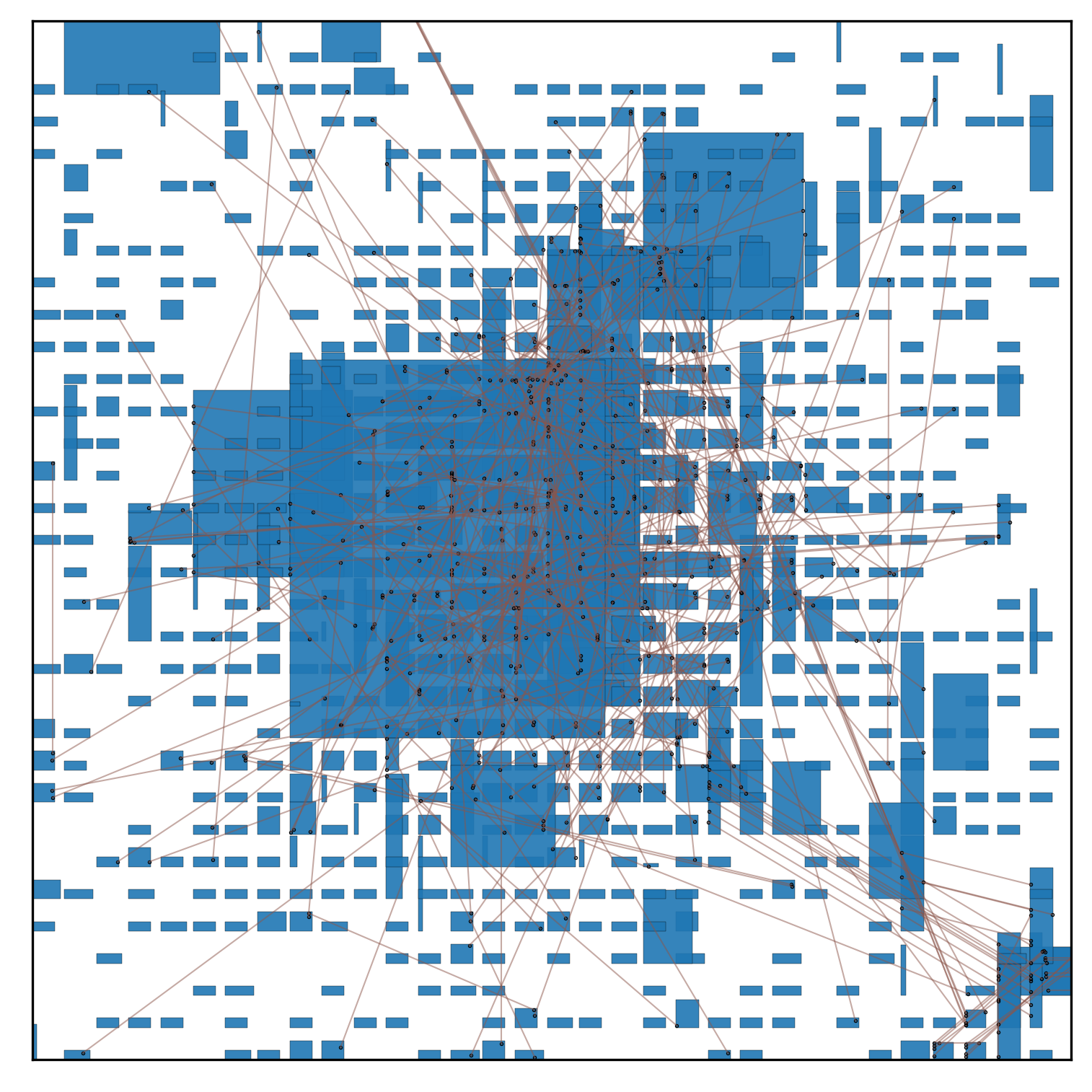

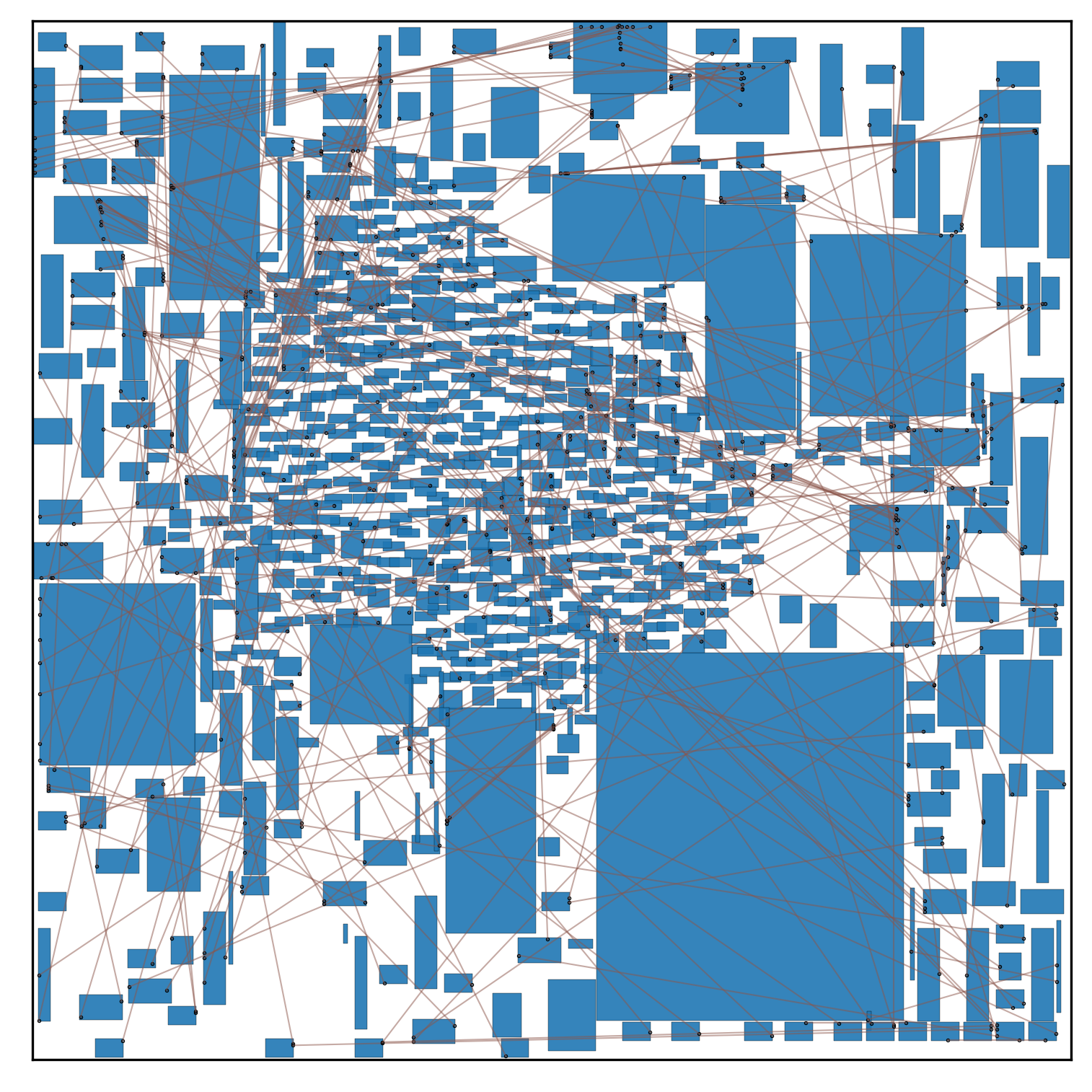

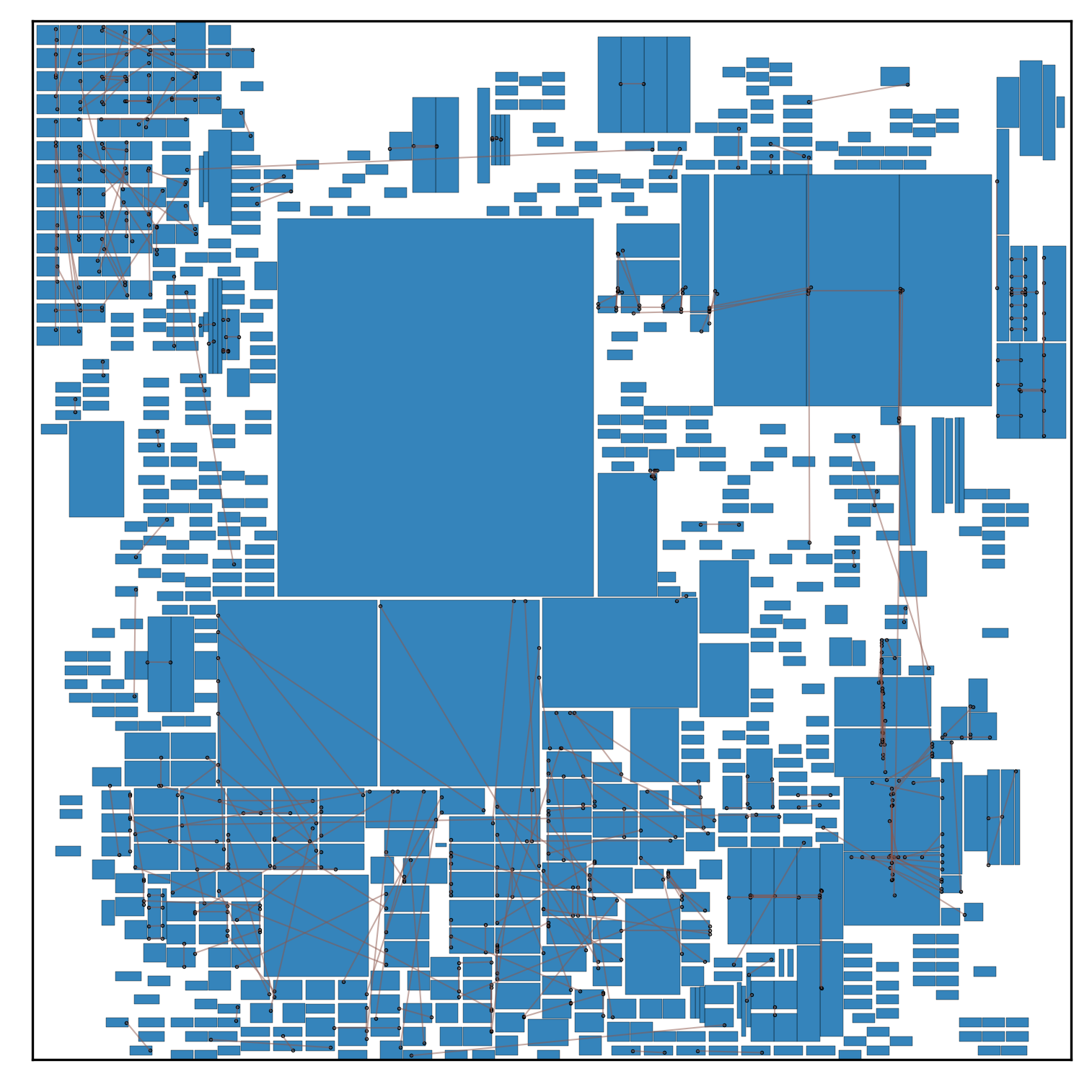

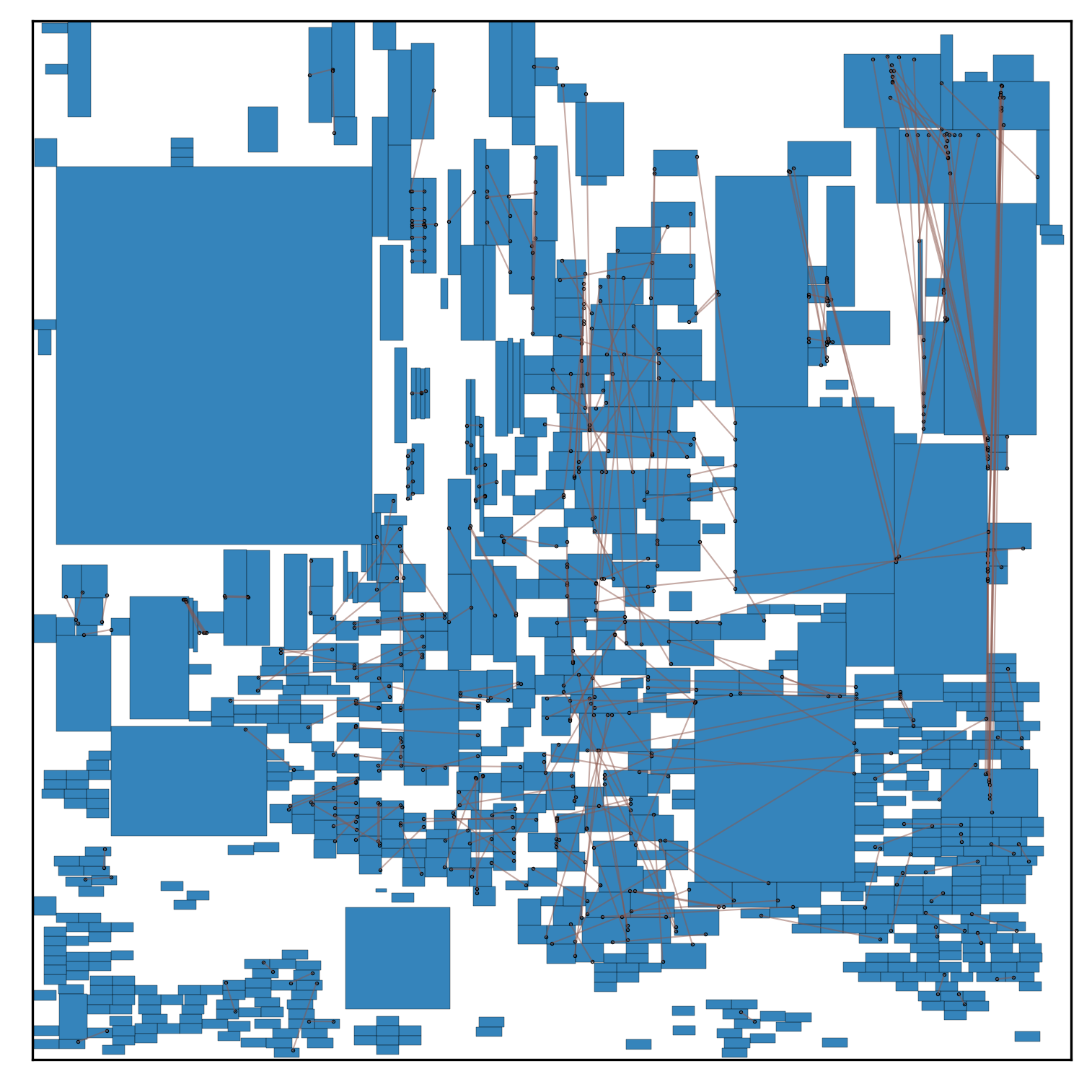

adaptec3
HPWL (105) 112.28 392.66 340.29 79.33
Wirel (105) 119.23 409.37 372.02 85.28

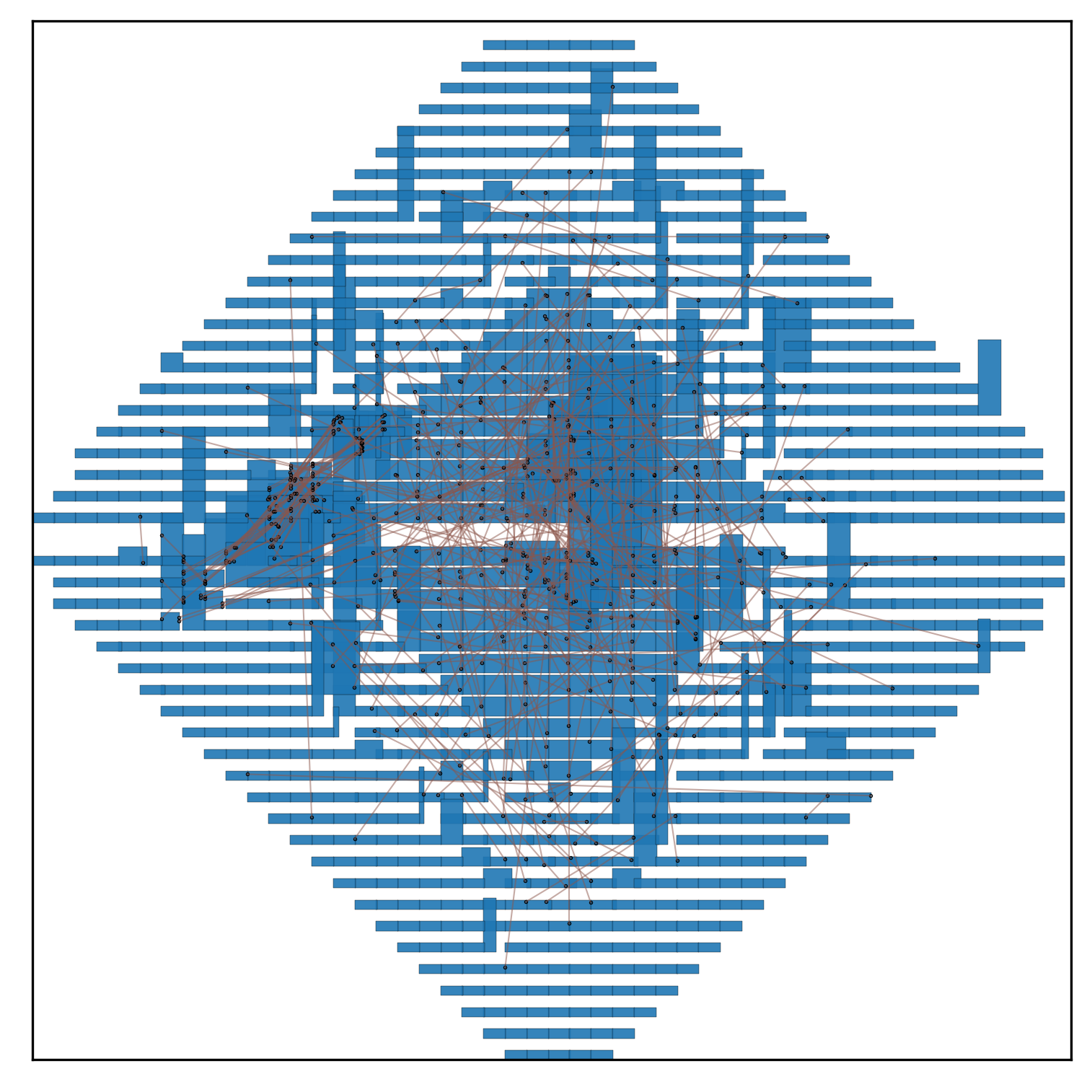

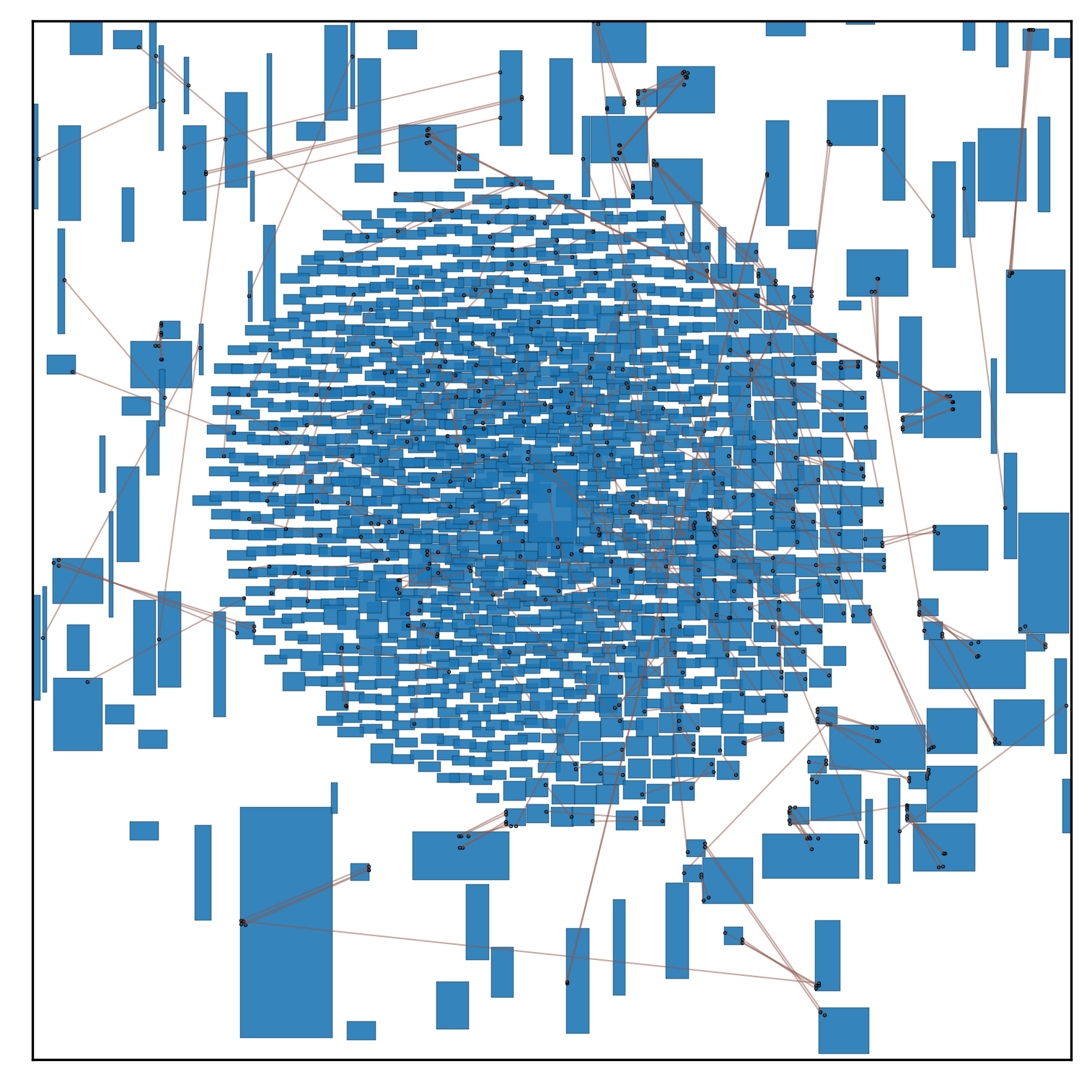

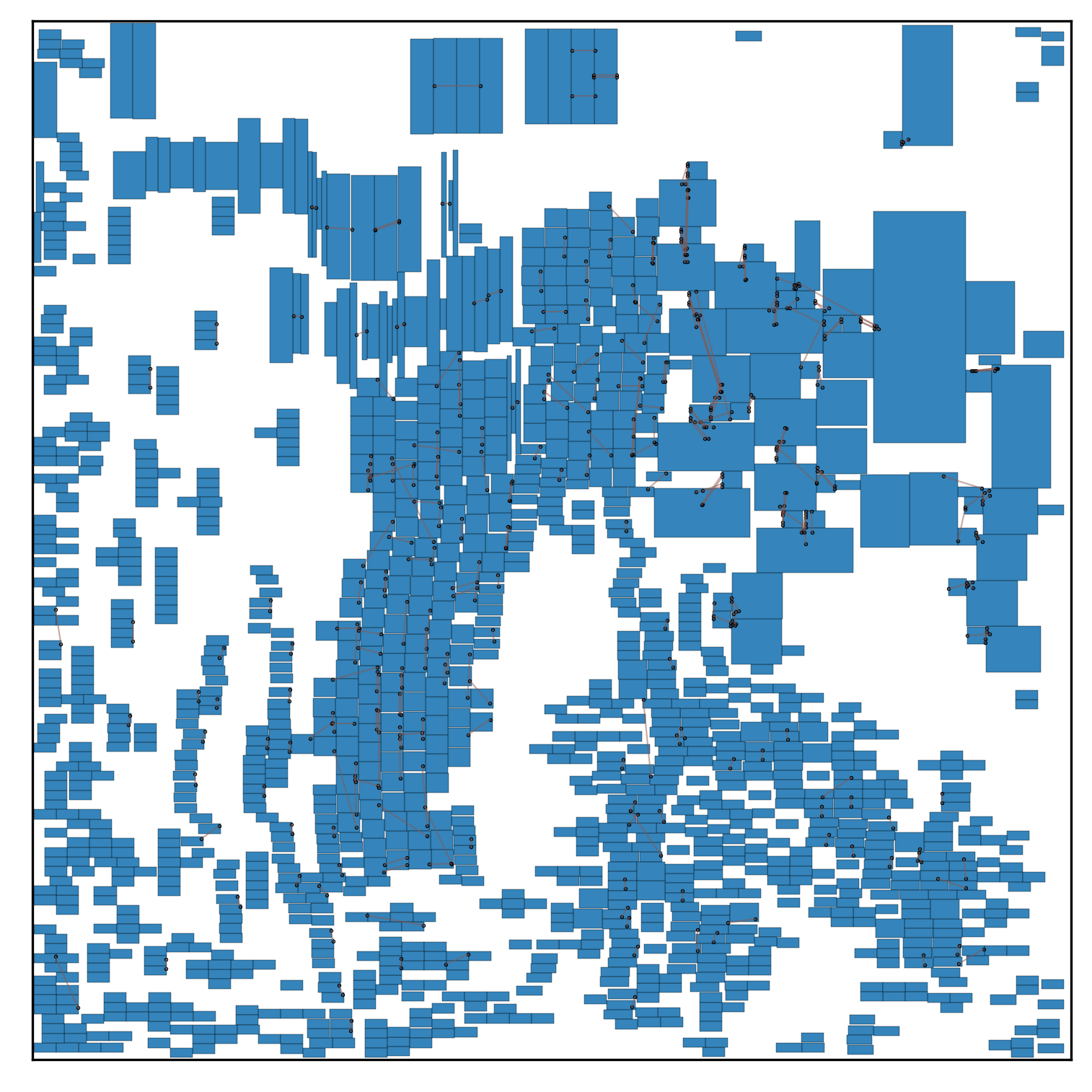

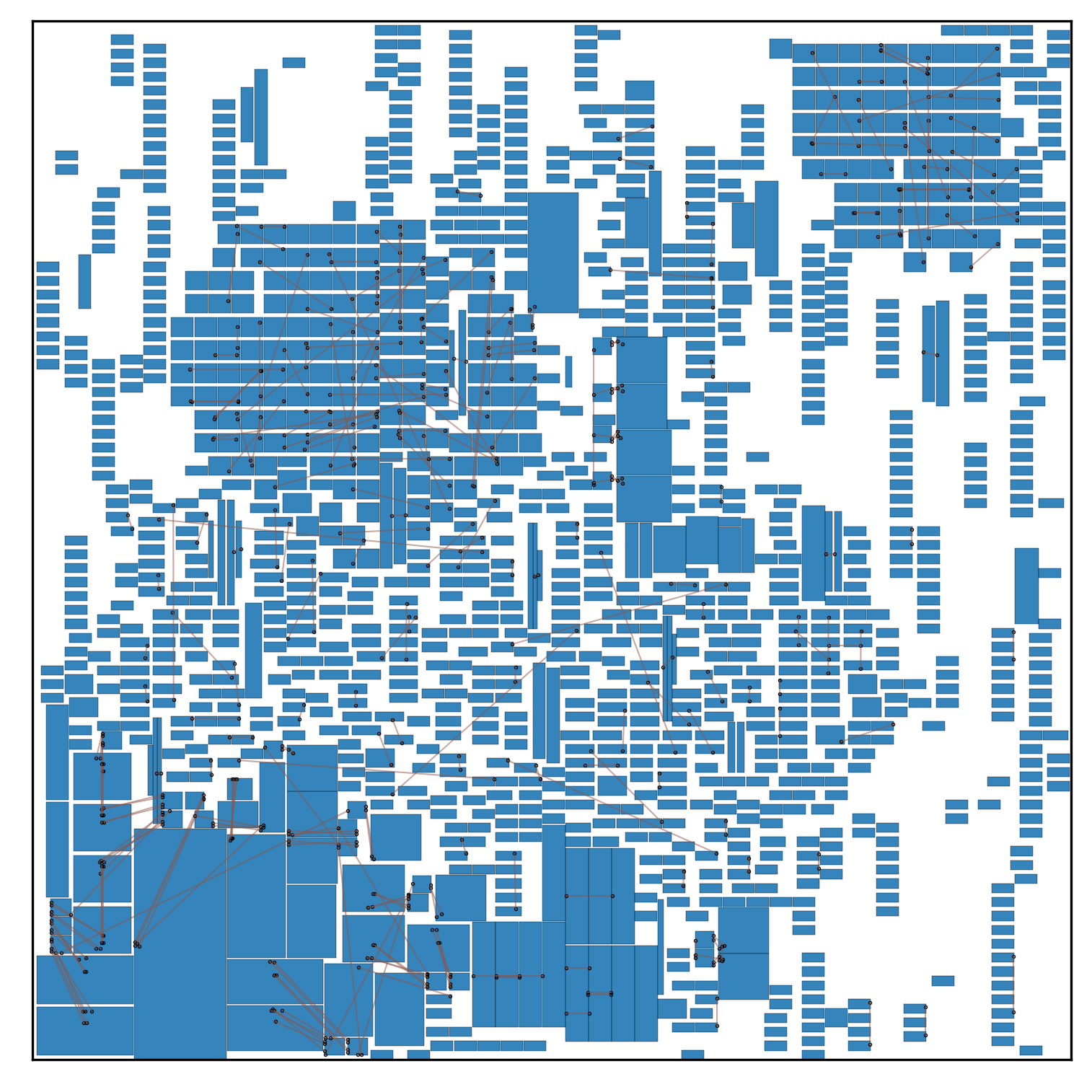

adaptec4
HPWL (105) 37.77 152.89 243.12 75.75
Wirel (105) 47.90 179.43 290.14 88.87

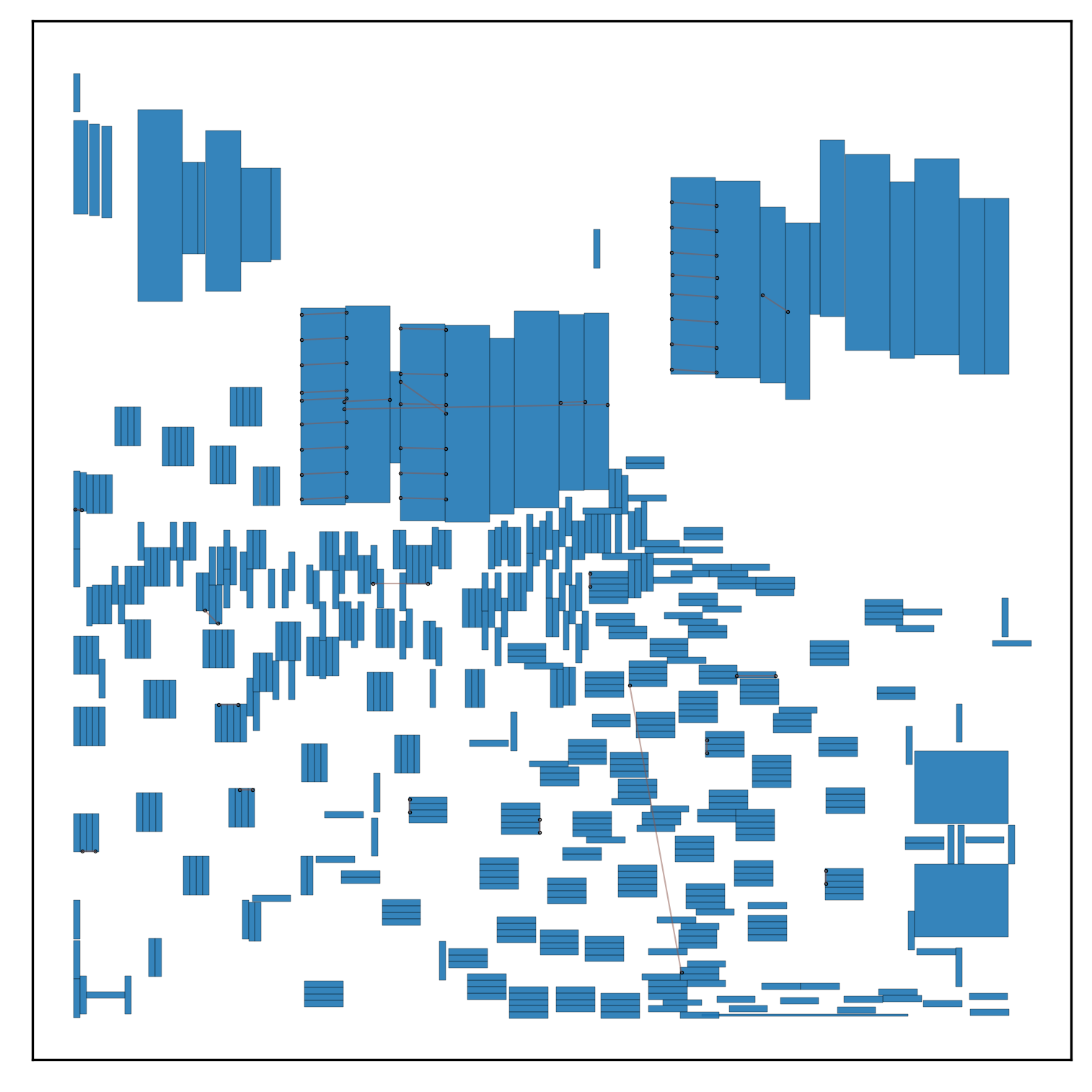

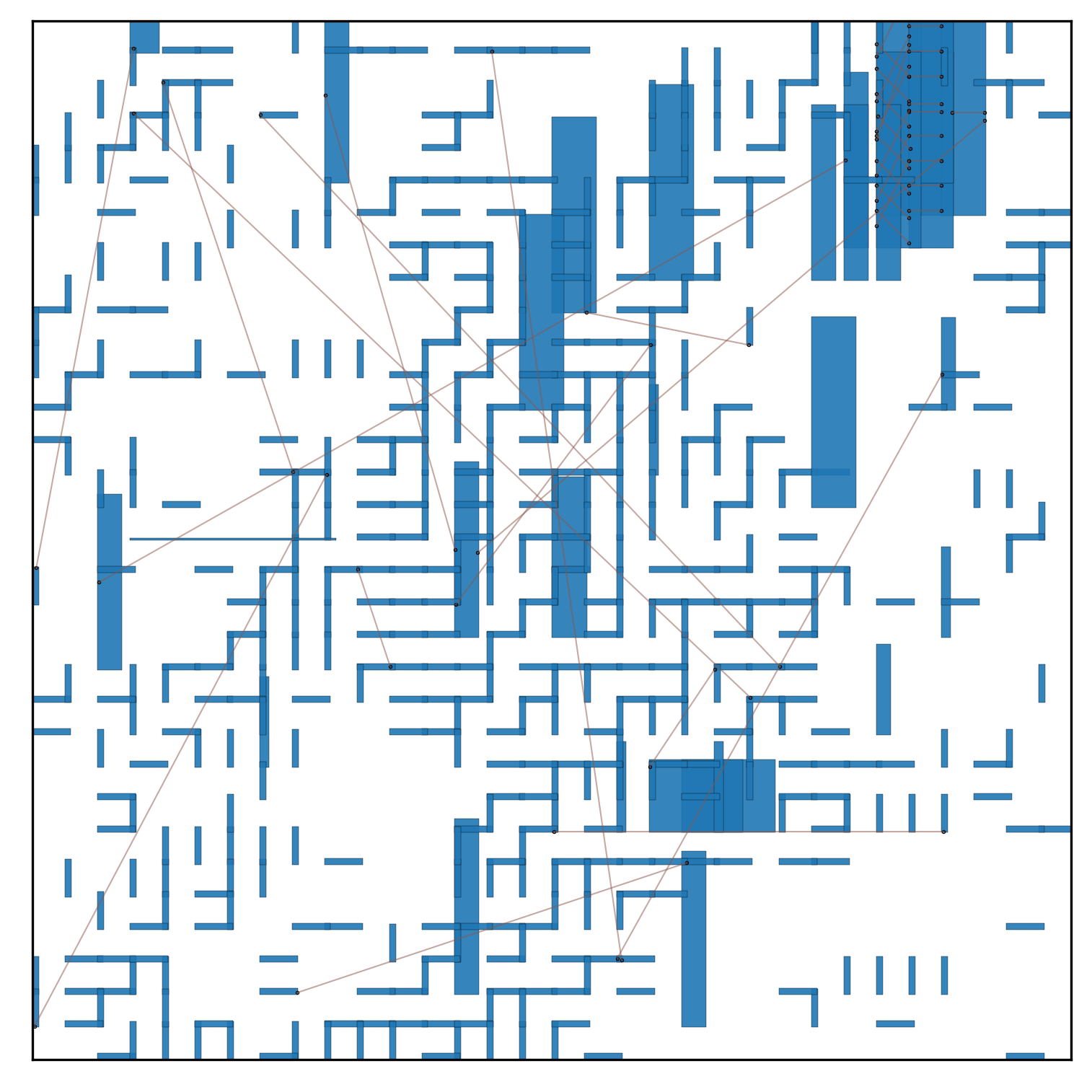

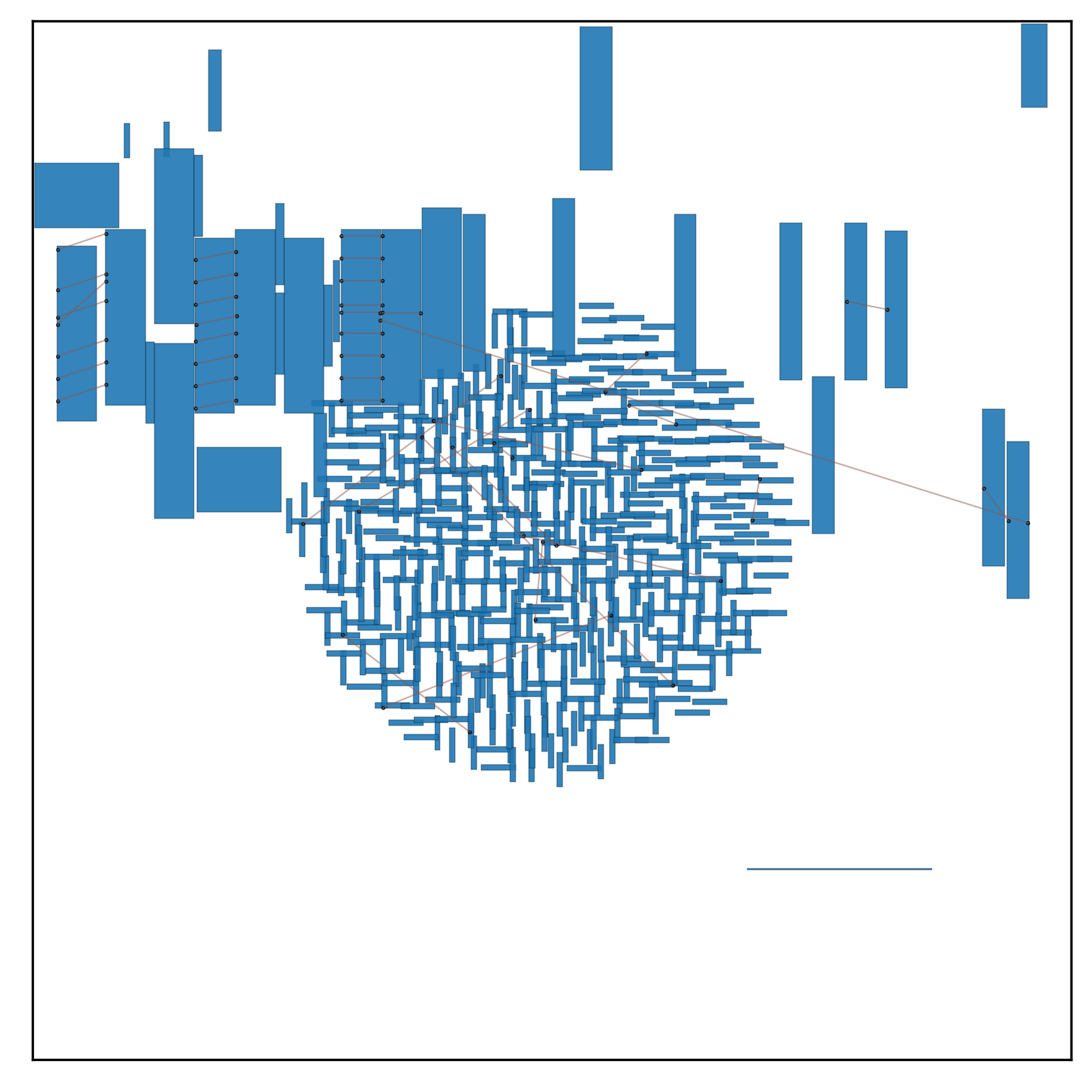

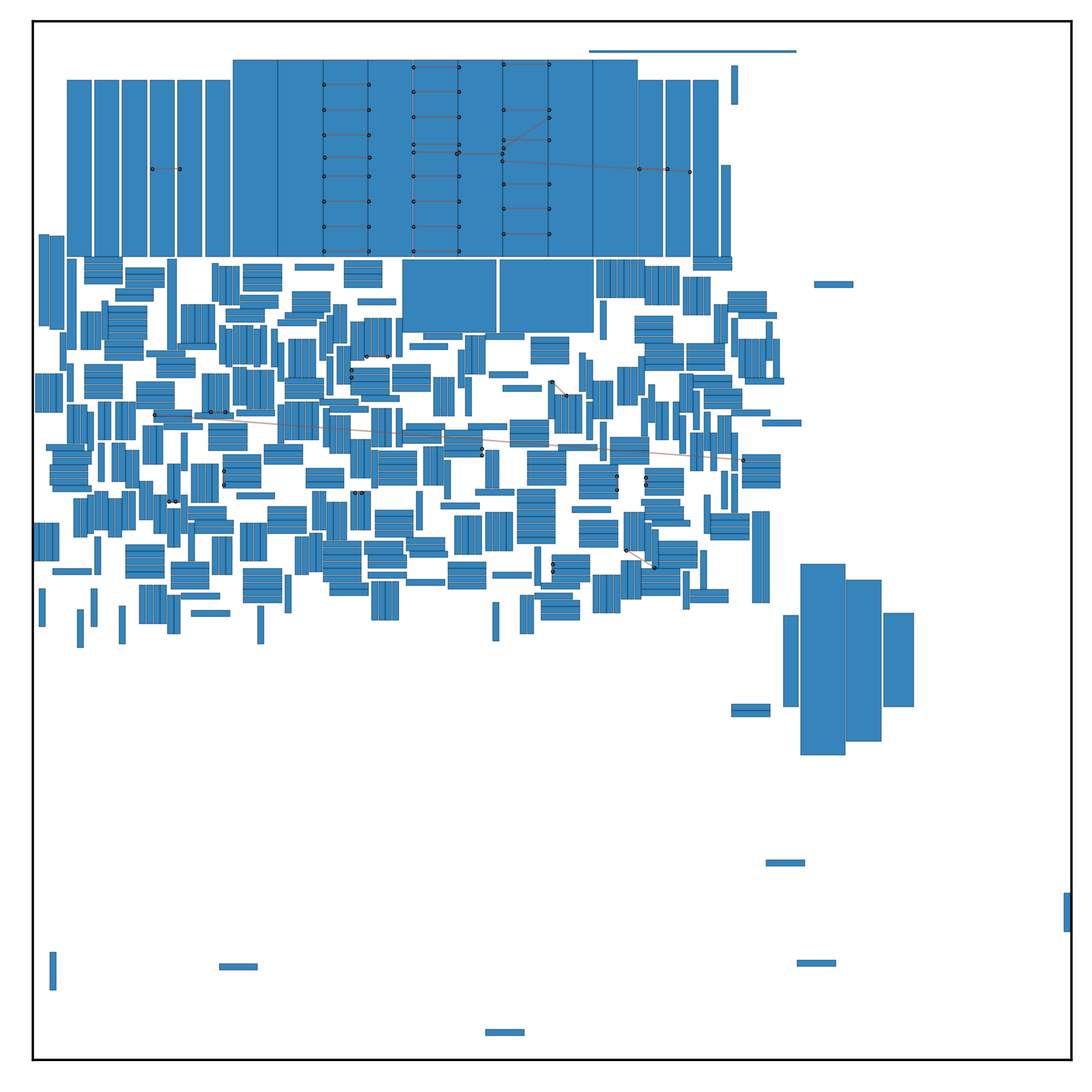

bigblue1
HPWL (105) 2.50 8.32 20.49 2.42
Wirel (105) 3.41 10.00 25.68 3.14

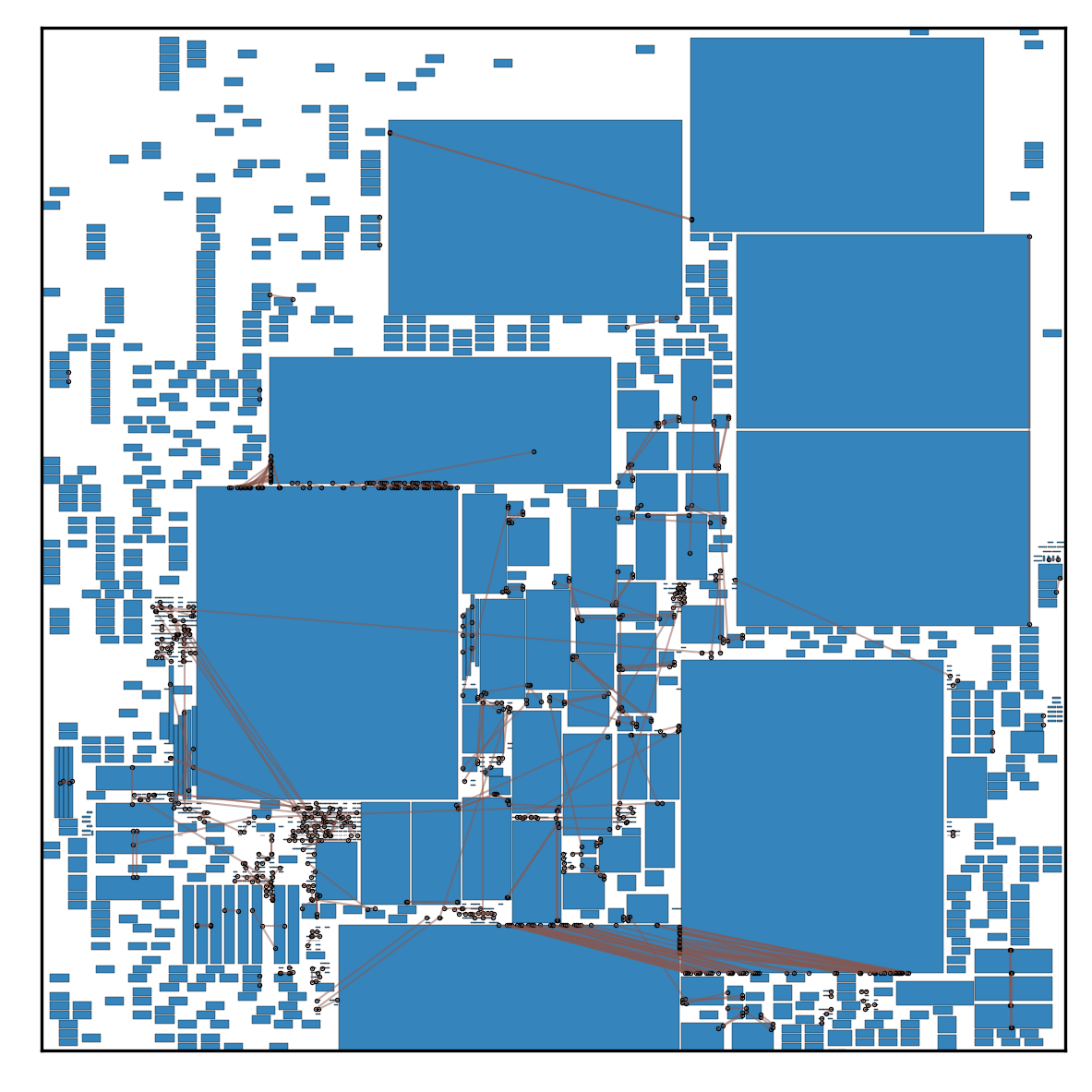

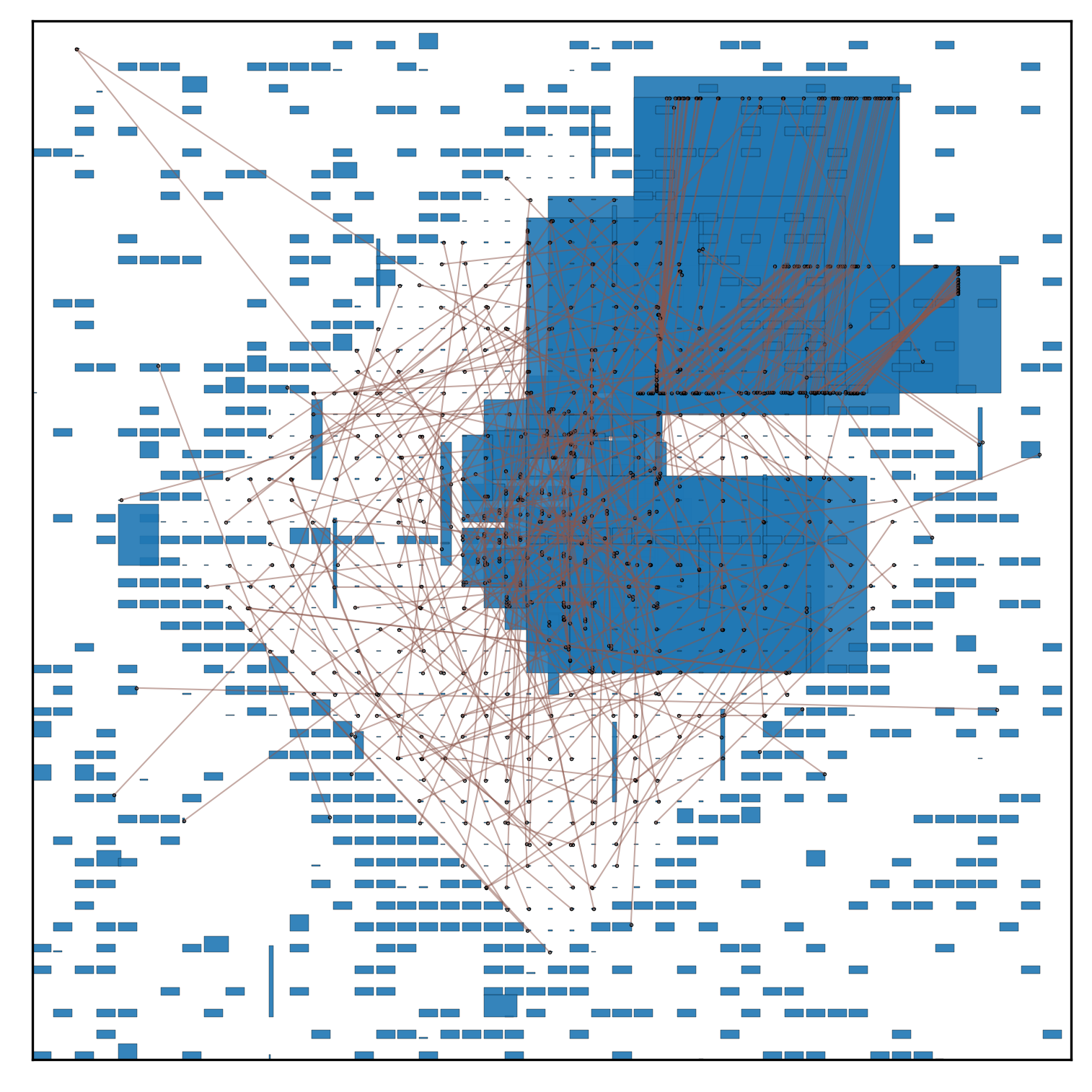

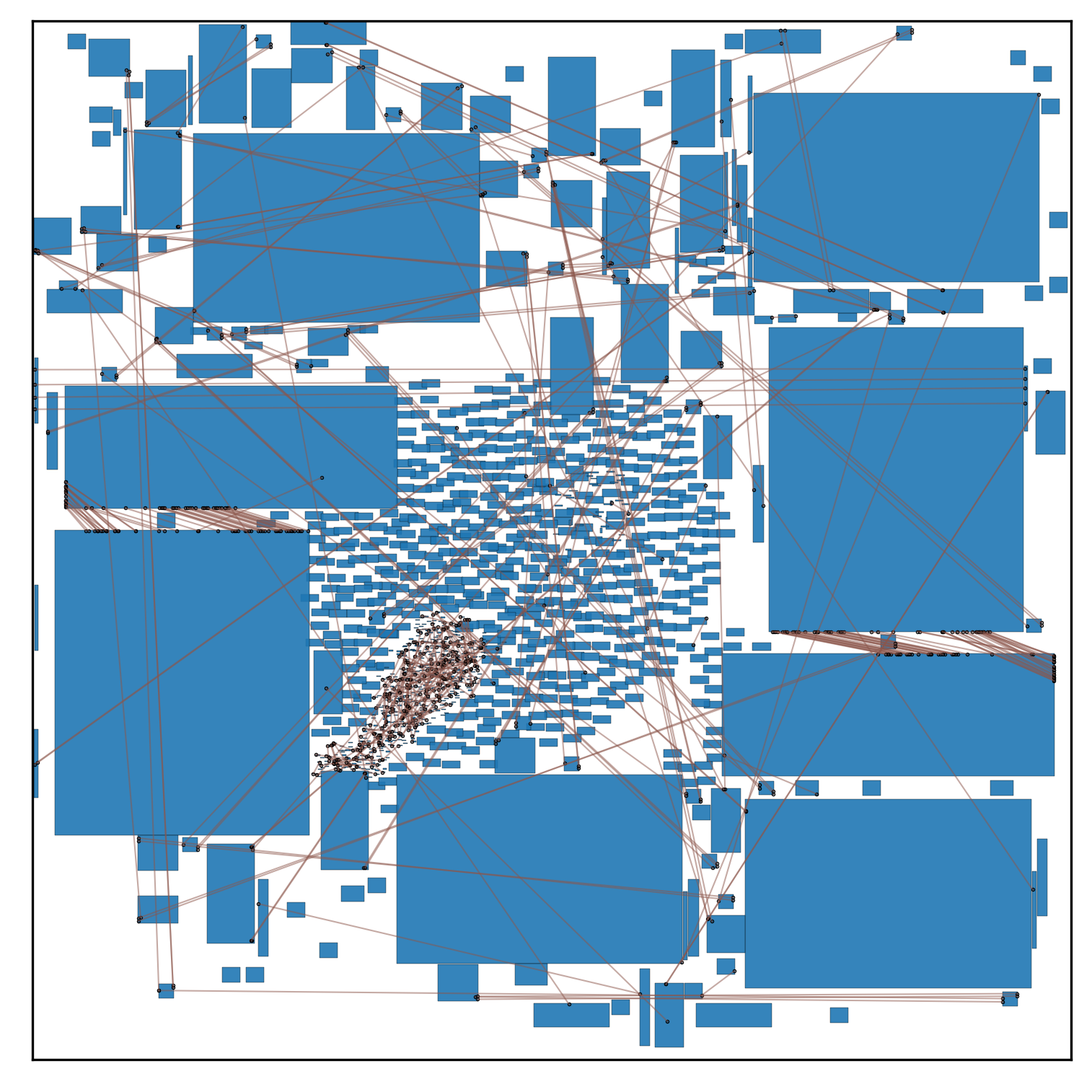

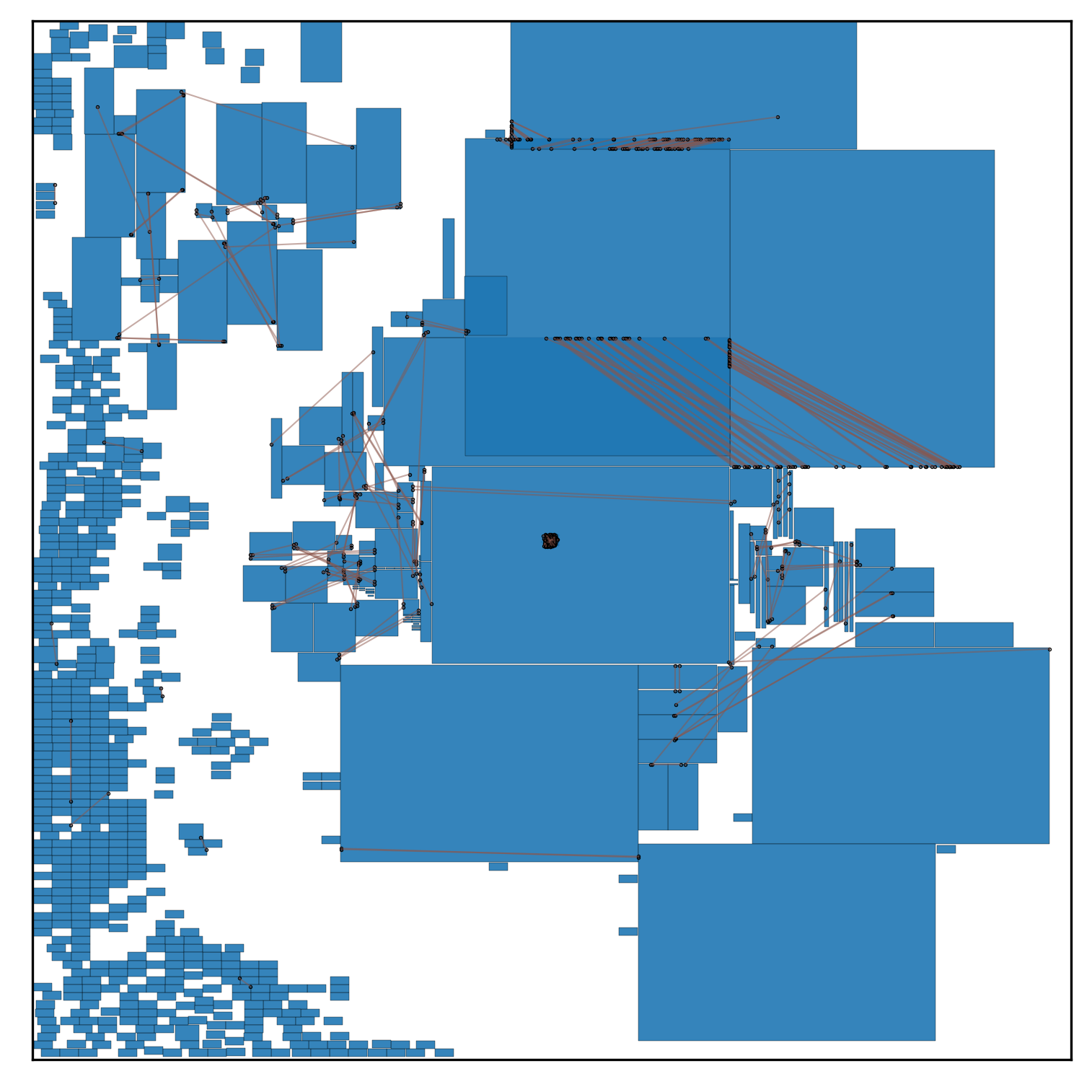

bigblue3
HPWL (105) 104.05 345.49 439.09 82.61
Wirel (105) 107.58 373.33 517.86 88.51

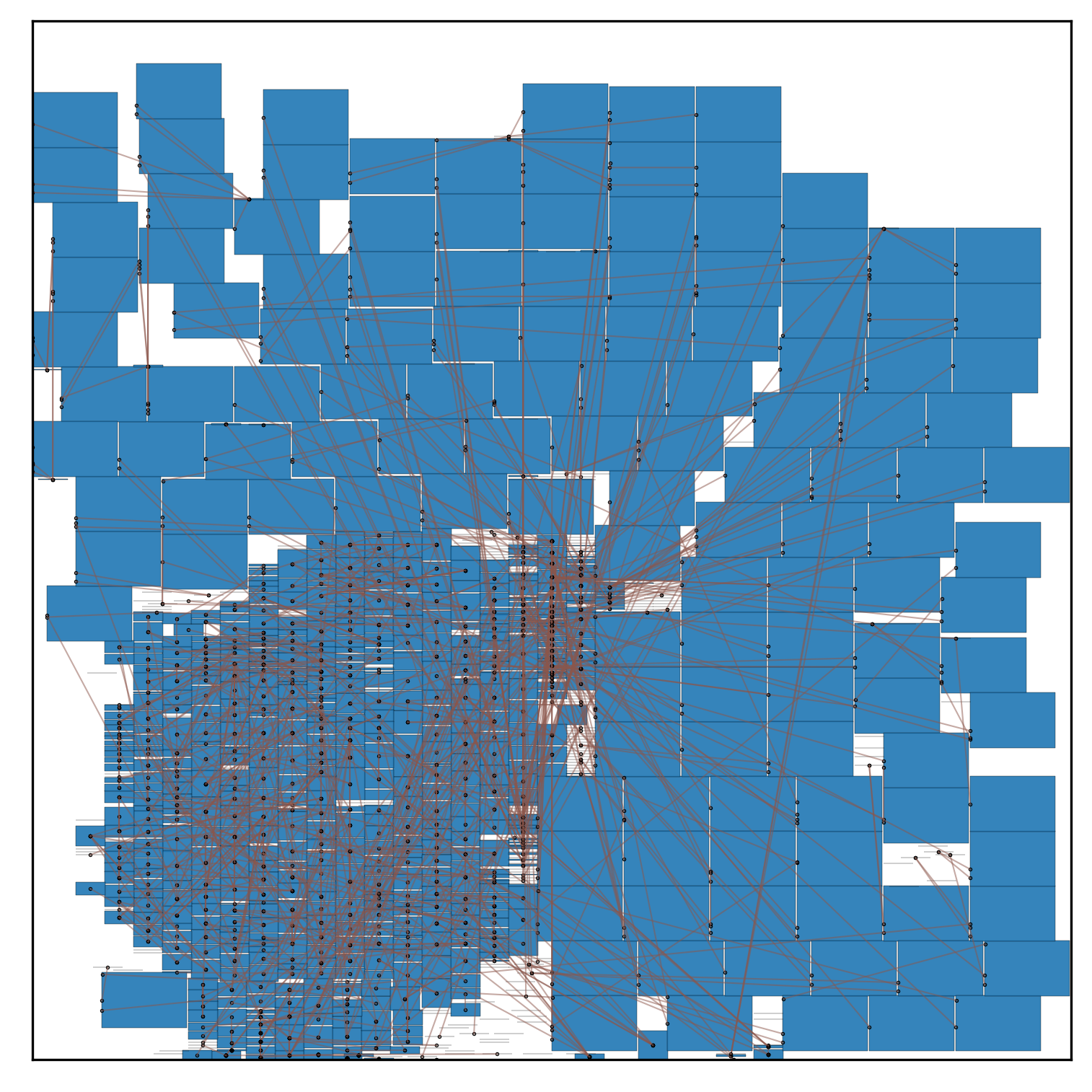

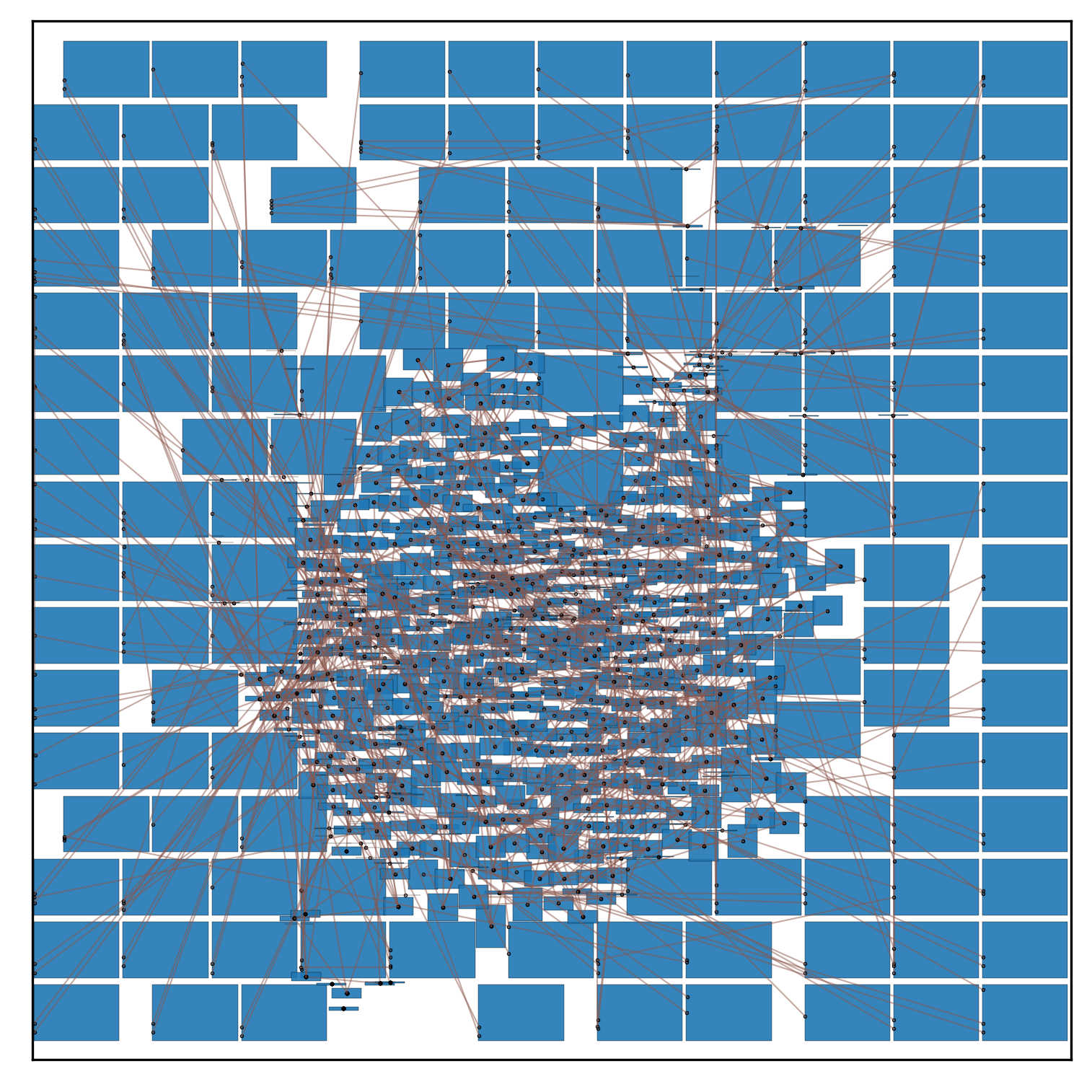

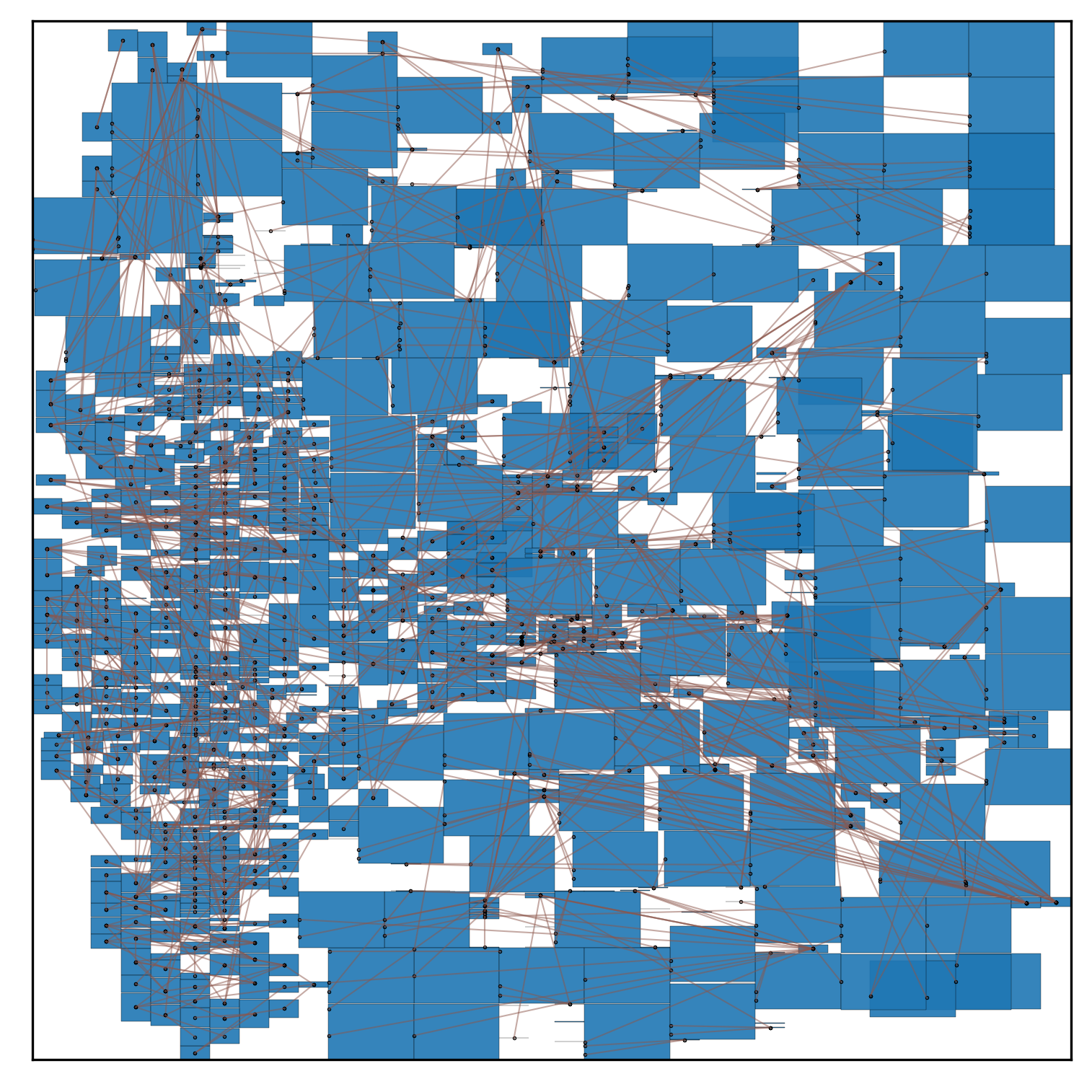

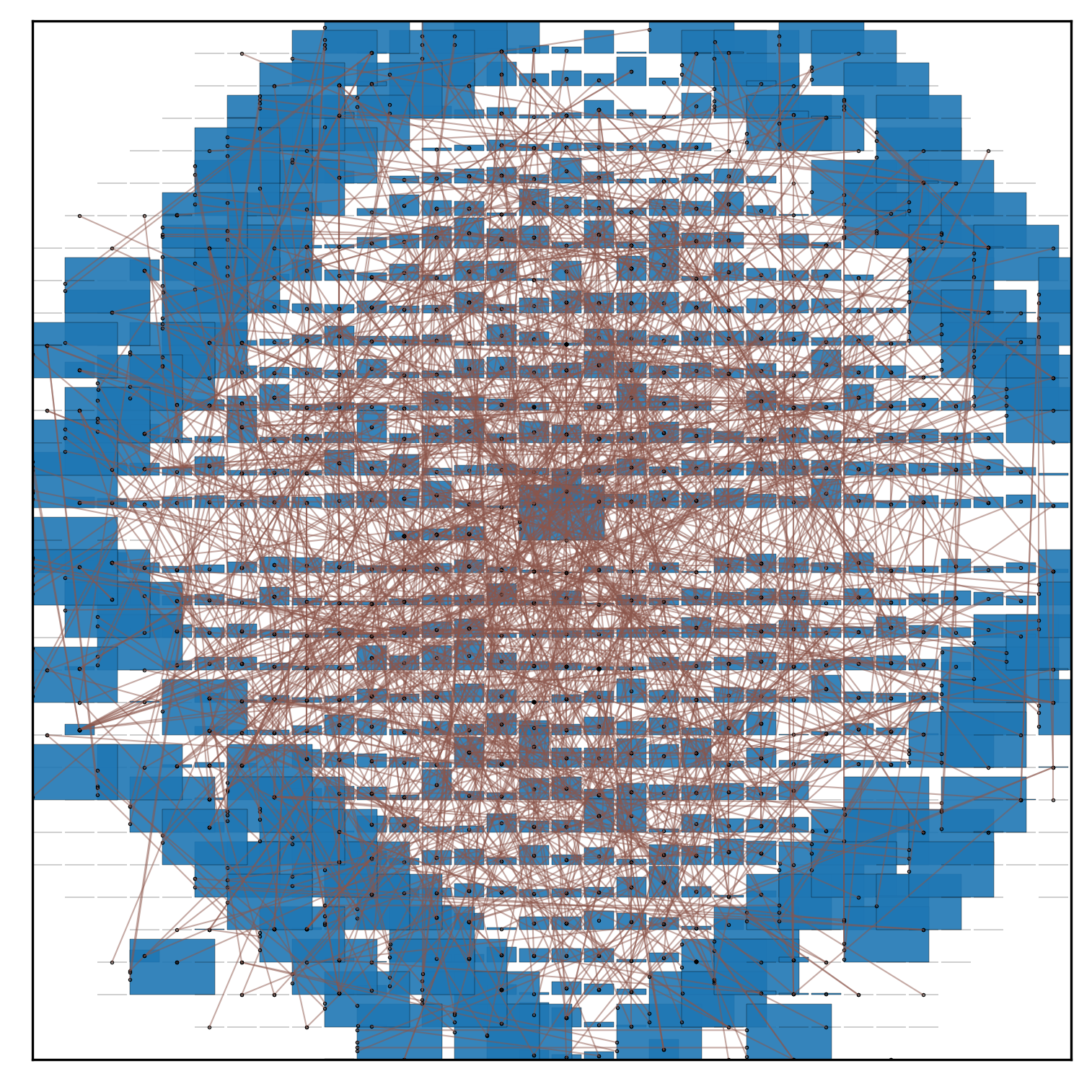

ariane
HPWL (105) 20.30 16.83 51.43 14.86
Wirel (105) 21.72 18.48 55.85 15.80
